Argon Gas Generator 100~300 Nm3/h petrochemical industry KDONAr-25000/35000/900 Skid Mounted Plant
Specifications:
KDONAr 100~300 Nm3/h Series of Argon Gas Generator
| MODEL CONTENTS | KDONAr-7500/5000/210 | KDONAr-10000/20000/300 | KDONAr-7500/4000/230 | KDONAr-2000Y/400/100 | KDONAr-8000/7500/235 |
| GAN/LIN flow | Nm3/h | 5000 | 2000 | 4000 | 2000 | 7500 |
| GAN/LIN purity | ppm | ≤5ppmO2 | 10ppmO2 | ≤5ppmO2 | 3ppmO2 | ≤1ppmO2 |
| GOX/LOX flow | Nm3/h | 7500 | 10000 | 7500 | 400/3000 | 8000 |
| GOX/LOX purity | ppm | 99.6% O2 | 99.5% | 99.8% O2 | 99.6% | 99.8% O2 |
| GAN/LIN pressure | MPa | 0.01 | 0.012/0.16 | 0.007/0.3 | 0.2 | 0.008/0.2 |
| GOX/LOX pressure | MPa | 0.015/0.05 | 0.007/0.3 | 0.015/0.16 | 0.02/0.045 | 0.01/0.15 |
| LAr flow | Nm3/h | 210 | 300 | 230 | 100 | 235 |
| LAr purity | ppm | 99.999% | ≤2ppmO2 ≤3ppmN2 | ≤2ppmO2, 3ppmN2 | ≤2ppmO2 ≤3ppmN2 | ≤2ppmO2 ≤3ppmN2 |
| LAr pressure | MPa | 0.16 | 0.12 | 0.15 | 0.15 | 0.16 |
Typical Product: KDONAr-2650/1500/95 Argon Gas Generator
Output, purity and pressure
| | Flow (Nm3/h) | Purity | Pressure MPa(G) |
| GAN/LIN | 2650/75 | 10ppmO2 | 0.01/0.2 |
| GOX/LOX | 1500/50 | 99.5%O2 | 0.02/0.02 |
| LAr | 95 | 2ppmO2,3ppmN2 | 0.16 |
Description:
The distribution on the upper column of argon component is not fixed. When the purity of oxygen and nitrogen changes, the distribution of argon will change correspondingly.
When the nitrogen content is excessive, the small temperature difference of crude argon column condenser will result in the liquid leakage of column plate; when the oxygen content is excessive, the extraction ratio will reduce, and the temperature of deoxidize furnace will be over high. Only when the operation condition of air separation plant is very stable, and the purity of oxygen and nitrogen reaches the standard, the argon column can be put into work.
Applications:
The products of the air separation units cover the fields of petrochemical industry, metallurgy, electronics, Medicine, machinery, construction material and New materials, and they have been well received over the country and supplied to many countries over the world (Indonesia, Czech, North Korea, Germany, USA, Mexico, Iran, Saudi Arabia, Egypt, Brazil, Kazakhstan, Hungary, Malaysia, Switzerland, Spain, Myanmar, Vietnam, Thailand, Russia, Mongolia, Syria, India, etc.) .The main products are: the small and medium size oxygen nitrogen ASUs, liquid oxygen and liquid nitrogen ASUs, oxygen and nitrogen liquefaction plants, high purity nitrogen generators.
Competitive Advantage:
- Our company’s economic effectiveness is in the lead of the industry in China
- Our company has a high market share in China
- Our company is one of the state 21 great equipment domestication bases
- Powerful manufacturing capacity
- Successful experience of made many plants
- Engineers available to service machinery overseas
- Economization of energy
Product Tags:
|
|

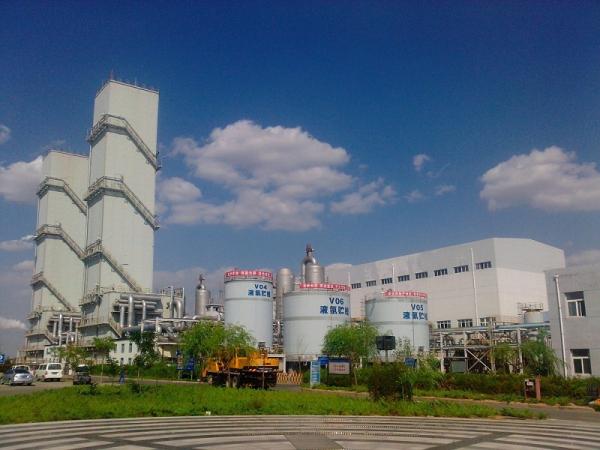

Argon Gas Generator 100~300 Nm3/h petrochemical industry Skid Mounted Plant Images
|
