Oxygen Gas Plant 1600/5600Nm3/h KDON-1600/5600 Air Separation Plant Petroleum refining Gas
Specifications:
Standard Product List for the Oxygen Gas Plant KDON 1500~1800 Nm3/h (GOX) Series
| MODEL CONTENTS | KDON-1500 (30Y)/1000(30Y) | KDON-1540/3860 | KDON-1700/1700 | KDON-1700(120Y)/40Y | KDON-1800(40Y)/40Y |
| GOX flow | Nm3/h | 1500 | 1540 | 1700 | 1700 | 1800 |
| LOX flow | | 30Nm3/h | / | / | 120Nm3/h | 40Nm3/h |
| GOX purity | % | 99.6% | ≥95%O2 | ≥99.5%O2 | 99.5%O2 | 99.5%O2 |
| LOX purity | % | 99.6% | / | / | 99.6% | 99.6% |
| GOX pressure | kPa | 30 | 25 | 20 | 15 | 15 |
| LOX pressure | kPa | | / | / | 150 | 150 |
| GAN flow | Nm3/h | 1000 | 3860 | 1700 | / | / |
| LIN flow | | 30Nm3/h | / | / | 40Nm3/h | 40Nm3/h |
| GAN purity | % | ≤5ppm O2 | ≥95%O2 | ≤10ppmO2 | / | / |
| LIN purity | % | ≤5ppm O2 | / | / | ≤5ppmO2 | ≤5ppmO2 |
| GAN pressure | kPa | 15 | 10 | 15 | / | / |
| LIN pressure | kPa | | / | / | 200 | 200 |
Typical Product:1600/5600Nm3/h KDON-1600/5600 Air Separation Plant
Output, purity and pressure
| Product | Flow (Nm3/h) | Purity | Pressure MPa(G) |
| GOX | 1600 | ≥93%O2 | 0.15 |
| LOX | 50L/h | ≥93%O2 | 0.2 |
| GAN | 5600 | ≤3ppmO2 | 0.029 |
| LIN | 50L/h | ≤3ppmO2 | 0.4 |
Description:
The process of this Air Separation Plant is that air is purified with molecular sieve under normal temperature, and booster turbo expander is employed to produce refrigeration capacity; the fractionating column employs convection sieve plate. The following is the PFD of this typical product.
Applications:
1. Control Atmosphere Gas
2. Mining Industry
3. Combustion Gas
4. Petroleum refining
5. Health care
6. Electronic Gas
7. Automotive and transportation equipment
Competitive Advantage:
In order to ensure the safety and reliability of the plant, the following measures are taken:
◆ Part liquid oxygen is obtained from main condenser so that the accumulation of such dangerous impurities as hydrocarbons is prevented. This can effectively guarantee the safe running of condenser/evaporator without special operation and maintenance.
◆ All pressure vessels, pipelines and elements are strictly designed, fabricated and inspected in accordance with the applicable national codes. The cold boxes for air separation plants and pipelines etc. inside columns are accepted by means of strength calculation.
◆ The on-site operational experience and user’s comments are unceasingly adopted to continuously improve the safety and reliability of air separation plants so that the major accident arising from minor negligence and misoperation can be prevented.
Product Tags:
|
|

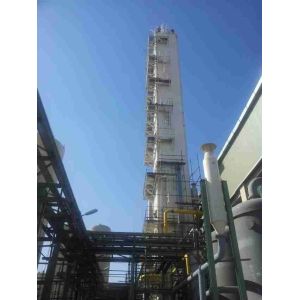

1600 / 5600Nm3/h Oxygen Gas Plant Petroleum refining Gas Images
|
